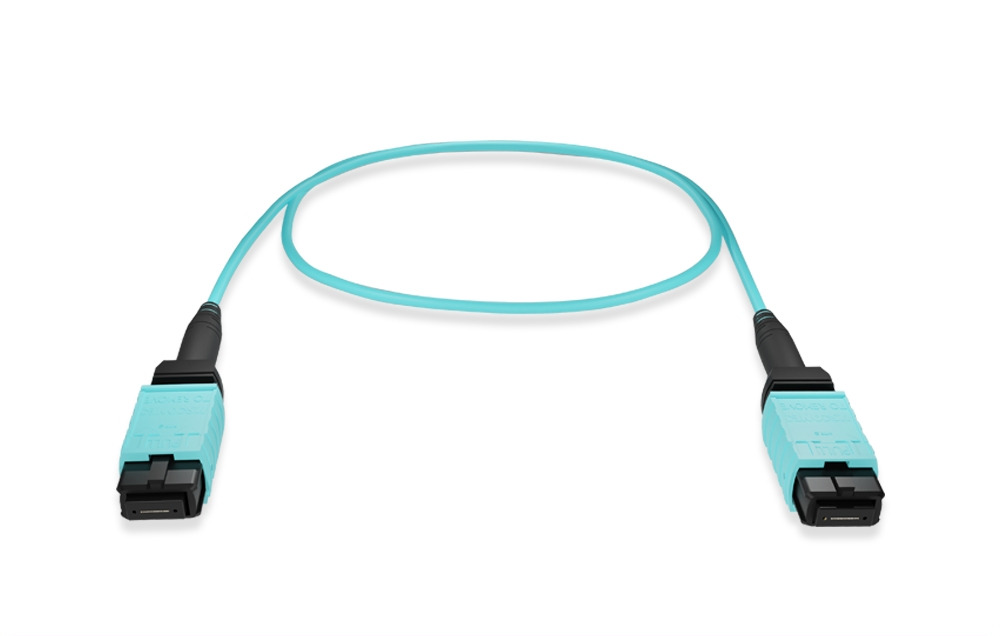

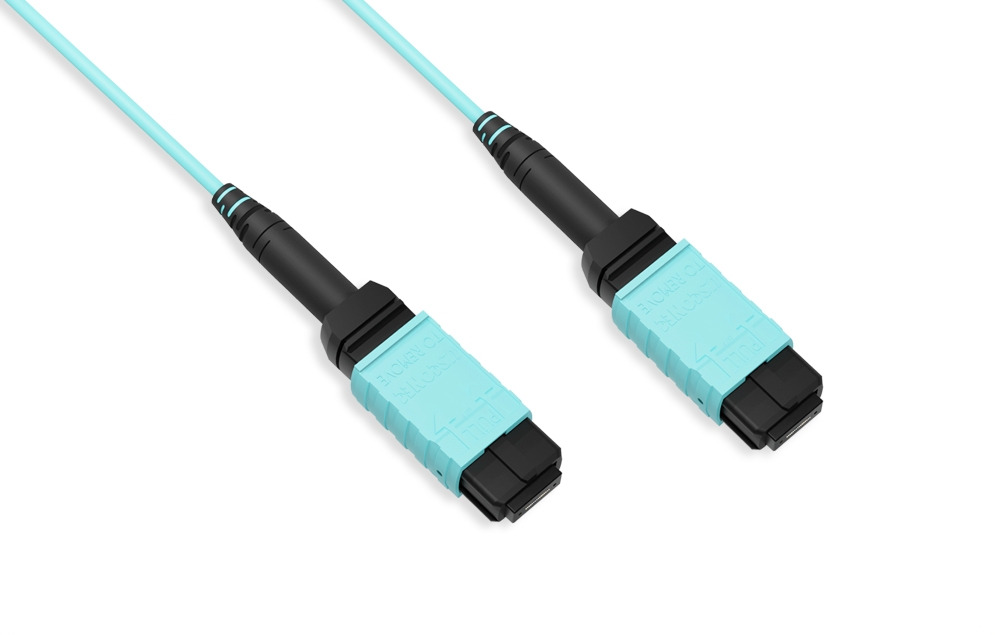

MTP OM4 Multi-Mode 12 Fibers Trunk Cable Type B
MTP OM4 Multi-Mode 12 Fibers Trunk Cable Type B - Image 2
MTP OM4 Multi-Mode 12 Fibers Trunk Cable Type B - Image 3
  • MTP 50/125 OM4 Multimode 12 Fibers Trunk Optic Cable Type B

MTP OM4 Multi-Mode 12 Fibers Trunk Cable Type B

Item RAV-FIB-00020

Color: Aqua

Price range: $94.95 through $292.95

In stock

  • MTP OM4 MULTI-MODE 12 FIBERS FEMALE TO FEMALE TRUNK CABLE TYPE B
  • MTP OM4 push-pull trunk cable is designed for high-density connectors and various cable configurations. It is an ideal solution for multi-fibers termination in high-density networks for better space saving and less expensive installation or maintenance costs.
  • OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable.
  • With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm.
  • Supports 10Gb up to 550 meters, 40Gb, and 100Gb up to 150 meters.
  • OFNP (Plenum) rated fiber cable is ideal for use in the plenum space of commercial/residential buildings.
  • The MTP connector is fully compatible with MPO connector standards with the integrated push-pull mechanism and higher performance.

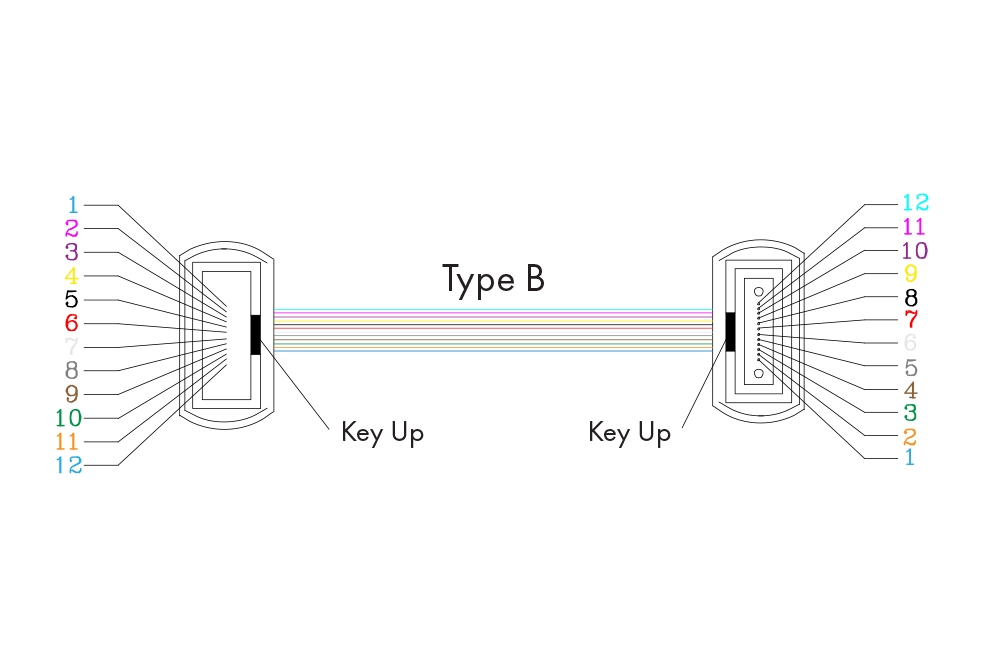

  • Connection type B (Reverse), key up to key up.
  • Use LED and VCSEL laser light sources.
  • Corning glass 50um core and 125um cladding.
  • 100% Tested with report included in each cable package.
  • Dust protective cap included
  • UL listed
  • Example of MTP set up with 10G network with server and switches
